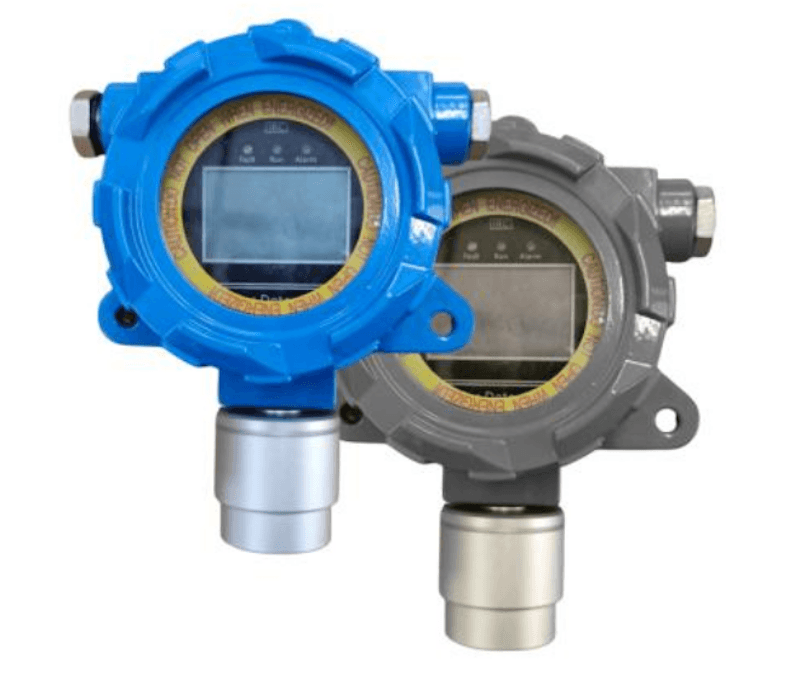

E-Sniffer Gas Detector
Industrial-grade gas detection made in India
Hythane, developed gas detection, to safeguards people, property, and the planet from dangerous gas leaks. Drawing on Hythane's world-class sensor technology, we provide solutions that foster safer,
more secure, and productive spaces. The e-Sniffer gas
detector is a micro-controller-based transmitter
designed for use with Hythane's Metal Oxide
Semiconductor (MOS), Catalytic and Electrochemical
sensor. It is designed to detect gases in parts per
million (ppm) and volume percent levels and provide
status indication and alarm outputs.
e-Sniffer provides a 4-20 mA signal which is
proportional to 0-100% of the detection range at the
sensor. In addition, the e-Sniffer includes warning,
alarm and fault relay contacts that can be used to
indicate an alarm or fault condition.
The e-Sniffer includes a three (3) digit LED display.
This local digital display continuously indicates gas
concentrations during normal operation and in the
calibration mode, display codes during the setup
mode and fault codes.
e-Sniffer has four different operating modes.
First, the normal operating mode in which
alarms are active, and the display and 4-20
mA readings are proportional to the gas
concentration at the sensor. Second, the gas
check mode that allows the user to apply gas
and check the sensor response while alarm
outputs are inhibited. Third, a calibration
mode in which gas is applied to the sensor to
calibrate the unit. Finally, a set-up mode
which allows the user to review or change
setup options such as sensor range. Selecting
Setup Mode on e-Sniffer is accomplished by
using the magnetic wand/ key.
